Handheld Hydraulic Post Driver
Product Details:
- Product Type: Handheld Hydraulic Post Driver
- Model: PD20-100
- Place of Origin： China
Features of handheld hydraulic post driver

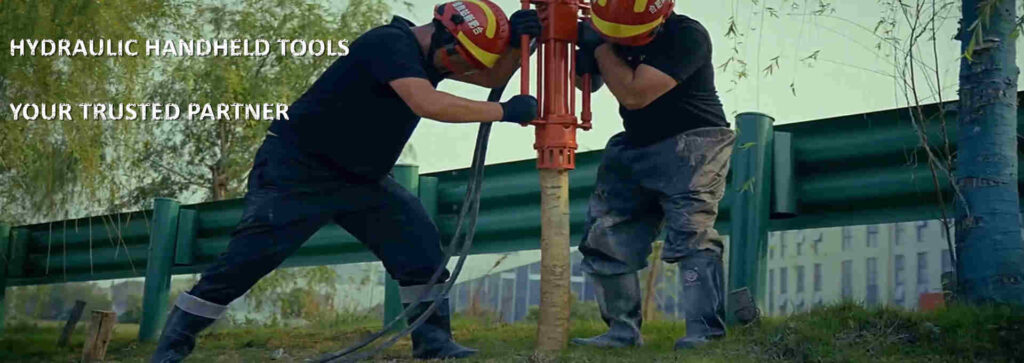

The handheld hydraulic Post driver is an efficient and portable device suitable for pile foundation construction in a variety of environments. It utilizes advanced hydraulic technology, delivering powerful impact force while being easy to operate, safe, and reliable. This device has a wide range of applications in flood control and rescue, road maintenance, making it the preferred tool for
efficient piling operations.
◎Features
◆Powerful Impact: A hydraulic power pack provides powerful impact force, ensuring efficient piling operations.
◆Safe Operation: The operator can start and stop the pile driver by pressing or releasing the sliding handle, preventing misoperation and improving operational safety.
◆Multiple Pile Compatibility: A variety of optional pile sleeves are available to meet the needs of pile foundations of different materials and specifications.
◆Humanized Design: To reduce operator workload, the machine’s design incorporates ergonomic principles for a comfortable operating experience.
Working Principle and Core Structure
Drive Logic: High-pressure oil is supplied by a hydraulic power pack (or the hydraulic system of a tractor/excavator), driving a piston in the cylinder to reciprocate at high frequency, which in turn drives the impact hammer to continuously strike the top of the post, efficiently pressing fence posts, marker posts, steel stakes, etc., into the soil. Compared to pneumatic/manual hammers, handheld hydraulic post driver offers greater impact force, more stable frequency, and more controllable noise and vibration.
Core Components
Impact Head + Guide Sleeve (prevents post tilting and protects the post head)
Hydraulic Cylinder + Control Valve (handle/remote dual control)
High-Pressure Oil Hose + Quick Connector
Portable Power Unit (internal combustion engine/electric motor driven hydraulic pump)
Shock-Damping Handle (reduces operator fatigue)
Main application scenarios
Agriculture/Ranch: Rapid installation of wire mesh fence posts and T-shaped posts;
Road Engineering: Traffic sign posts and crash barrier posts;
Forestry/Horticulture: Vineyard and orchard support piles;
Emergency Rescue: Flood control sheet piles and tent/temporary fencing anchor piles;
Photovoltaics/Infrastructure: Small ground anchors and signal pole foundation posts.
Advantages and Selection Recommendations
Core Advantages: 10+ times more efficient than manual hammering; No splitting at the top of the post, good verticality; Vibration-damping design reduces labor intensity; Suitable for clay and sandy soils (pre-drilling is required for hard rock formations);
Selection Points:
① Select impact energy based on post diameter and length;
② Confirm on-site power (whether there is a tractor hydraulic interface or a separate power pack is required);
③ Prioritize models with guide sleeves and vibration-damping handles;
④ Consider transportation convenience (weight ≤ 30 kg, portable by one person);
Safety and Maintenance
①Safety helmets, ear protectors, and vibration-damping gloves must be worn during operation;
②Hydraulic hoses must not be bent or placed near heat sources;
③ Regularly check joint seals and oil cleanliness (change oil every 500 hours);
④ For long-term storage, drain the oil and clean and prevent rust.
| Type | PD20-100 | PD20-120 |
|---|---|---|
| Weight (kg) | 24.4 | 24.8 |
| Impact Force(J) | 100 | 100 |
| Impact Frequency(bpm) | 1500-2100 | 1500-2100 |
| Output flow(lpm) | 26-34 | 26-34 |
| Operating pressure (bar) | 105-140 | 105-140 |
| Dimension(mm) | 257×220×760 | 257×220×760 |
| Pile Dia. (mm) | Φ100 | Φ120 |
