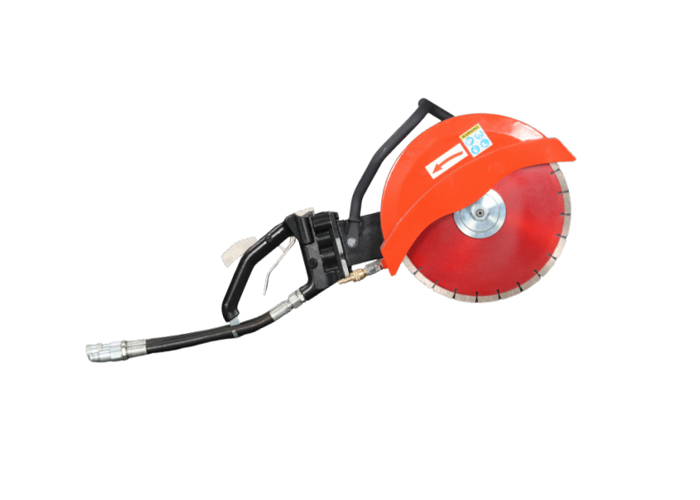

Hydraulic Concrete Cutting Saw
Hydraulic Concrete Cutting Saw
Product Details:
- Product Type: Hydraulic Concrete Cutting Saw
- Model: CO10
Specifications of Hydraulic concrete cutting saw
A Hydraulic concrete cutting saw is normally used for cutting concrete & reforced concrete with changeable blade.
◎Features of CO10
◆Blade 350mm with powerful performance
◆With the blade brake
◆Cutting arm adjustment
◆Fine balanced design and comfortable operating Hydraulic concrete saw
◆Built-in water-supply valve, both saws for use such as diamond and metal saw, and with anti-saw blade stuck function
| Type | CO10 |
|---|---|
| Weight (kg) | 10 |
| Output flow (l pm) | 26-34 |
| Operating pressure (bar) | 105-140 |
| Diameter of blade (mm) | 355 |
| Cutting depth (mm) | 130 |
| Dimension(mm) | 700×240×420 |

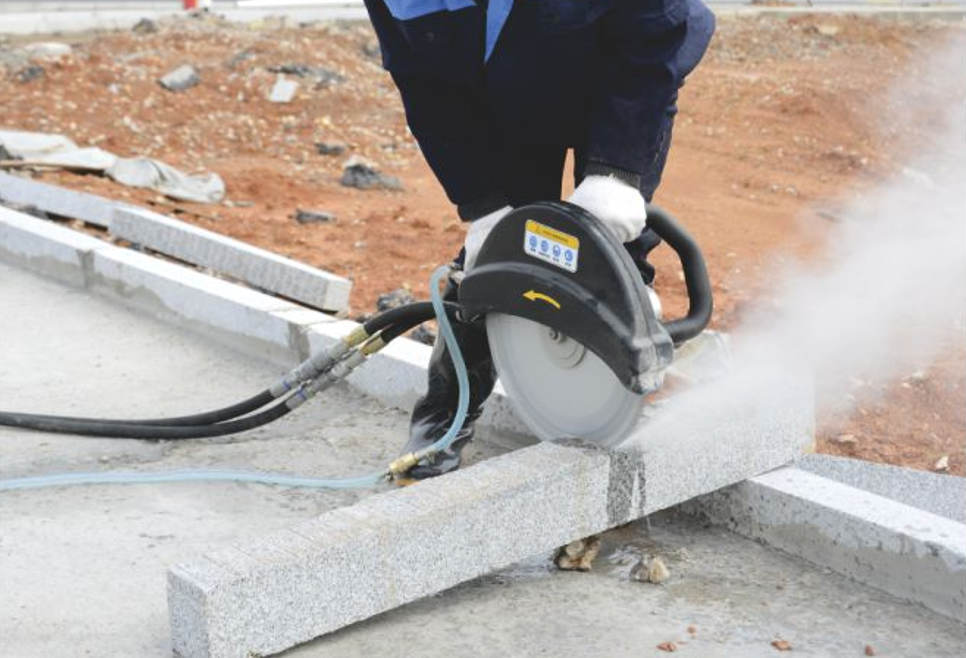

What is a hydraulic concrete cutting saw
The handheld hydraulic concrete cutting saw is a professional, portable cutting tool powered by an independent hydraulic power pack. It adopts hydraulic drive technology and is equipped with a high-speed diamond cutting blade, mainly used for efficient cutting of concrete, reinforced concrete, brick wall, stone, asphalt and other hard materials in construction, demolition, rescue and road maintenance.
Product Features
Hydraulic Powered & Stable Performance
Driven by a dedicated hydraulic power pack, it provides consistent torque and strong cutting force, ensuring smooth operation even when cutting reinforced concrete, with no stalling or jamming.
Handheld & Lightweight Design
Compact structure and ergonomic handle make it easy to carry and operate in narrow spaces, overhead work and on-site emergency situations.
High Cutting Efficiency & Safety
Equipped with diamond saw blades for fast, clean cutting. The hydraulic system produces no sparks, low vibration and low noise, making it safe for use in flammable and explosive environments such as mines, tunnels and chemical sites
Wide Application & Reliable Durability
Suitable for on-site cutting, renovation, demolition and disaster rescue. It features a fully enclosed structure, strong dust and water resistance, and can work continuously under harsh working conditions.
Typical Applications
- Building demolition and wall opening
- Road and pavement repair cutting
- Emergency rescue and disaster relief
- Stone and concrete construction processing

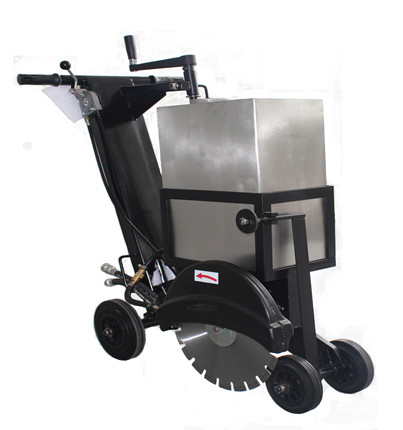

Hydraulic concrete cutting saw with a saw cart
This combination equipment consists of a handheld hydraulic concrete cutting saw and a specially designed supporting saw cart. It is driven by a matching hydraulic power pack, integrating the flexibility of a handheld cutter with the stability of a cart-type cutting machine. It is widely used for straight, precise cutting of concrete floors, roads, pavements, bridge decks and other flat hard materials.
Safety Precautions
- Personal protective equipment (PPE)Always wear safety goggles or a face shield, heavy-duty work gloves, safety boots, ear protection, and a dust mask or respirator. Avoid loose clothing or jewelry that could get caught.
- Check equipment before useInspect the hydraulic power pack, hoses, connections, and saw blade for damage, leaks, or wear. Make sure the diamond blade is securely mounted and undamaged. Do not use cracked or deformed blades.
- Maintain stable footing and postureHold the machine firmly with both hands. Keep a balanced stance and avoid overreaching to prevent loss of control.
- Avoid spark-sensitive environmentsAlthough hydraulic tools are spark-free, always confirm the working area is free of flammable liquids, gases, or dust before cutting.
- Use proper cutting techniqueStart the saw before touching the material. Do not force the blade; let the blade cut at its natural speed. Avoid twisting or jamming the blade during cutting.
- Prevent hydraulic hazardsDo not touch high-pressure hydraulic leaks, as they can cause severe injury. Keep hoses away from sharp edges, heat, and moving parts.
- Cooling and dust controlUse water cooling (wet cutting) if available to reduce dust, prevent overheating, and extend blade life.
- Keep bystanders awayEnsure no one is in the cutting area to avoid injury from flying debris.
- Shut down safelyRelease the trigger, wait for the blade to stop completely, then set the saw down. Turn off the hydraulic power pack and release pressure before disconnecting hoses.
- Proper trainingOnly trained and authorized personnel should operate the equipment.
